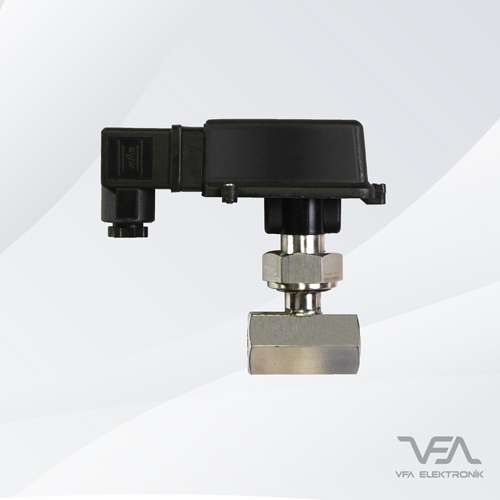

Immersion Tongue Type Flow Switches

  • Immersion Tongue Type Flow Switches
Immersion Tongue Type Flow Switches
0 ALL
: STOKTA YOK

Flow Switches and sensors are designed to detect and control flow by detecting movement in the pipe. These economical and highly sensitive products; They are used in many areas of the industry such as water heater, boiler systems, heating cooling systems, lubrication systems. Its assembly is effortless and it is connected vertically. The relay circuit on it for control purposes is without contact with the fluid and the contact status can be adjusted according to the user's request.

Flow Switches and sensors are designed to detect and control flow by detecting movement in the pipe. These economical and highly sensitive products; They are used in many areas of the industry such as water heater, boiler systems, heating cooling systems, lubrication systems. Its assembly is effortless and it is connected vertically. The relay circuit on it for control purposes is without contact with the fluid and the contact status can be adjusted according to the user's request.

Body Material AISI 316 Paslanmaz Çelik & PP
Pedal Material AISI 316 Paslanmaz Çelik & PP
Socket DIN 43650 C
Maximum Temperature (T max) 110 ˚C
Maximum Pressure (Pmax) 25bar (362PSI)
Connection Size ½ ”Union - Male Threaded
Output Reed Contact, 26 VA / 20 W
Set Point For DN50… Dn150 at Increasing Flow
Protection Class IP65
Maximum Power Supply 230 VAC, 48VDC
Maksimum Akım 0,5 A
